Divers exploring deeper waters or nearing the end of a dive with cylinder pressure falling below 50 bar often notice an increase in required inhalation effort. Many attribute this resistance entirely to higher gas density at depth or psychological fatigue.
However, this change in breathing effort frequently stems from mechanical disparities within the primary pressure reduction mechanism of the first stage regulator. Exploring how this core component steps down destructive cylinder pressures near 3000 psi into a smooth flow—and examining how balanced technology isolates breathing effort from tank pressure—reveals the engineering required for effortless gas delivery.
The Physics of Taming 200 Bar Down to 10 Bar
Breathing gas inside a scuba cylinder is compressed to high pressures between 200 and 300 bar. Routing this gas directly to a second stage mouthpiece would destroy the demand valve under excessive dynamic force and cause severe barotrauma to the diver's lungs.
The first stage acts as a high-precision pressure reducing valve, dropping raw cylinder pressure down to an intermediate pressure roughly 9 to 10 bar above the surrounding ambient water pressure. At a depth of 10 meters, where ambient pressure is 2 bar, the first stage delivers an intermediate pressure of 12 bar, dynamically modulating output to 14 bar when ambient pressure reaches 4 bar at a depth of 30 meters.
This continuous regulation operates on dynamic force equilibrium. Internal sensors detect ambient water pressure fluctuations, sealing the valve orifice the moment mechanical spring tension and intermediate chamber pressure achieve equilibrium.
The Limits of Unbalanced Systems: The Mechanical Cause of Rising Inhalation Effort
Standard unbalanced first stages offer distinct advantages in manufacturing simplicity, rugged reliability, and economical field servicing. However, this mechanical simplicity introduces fundamental fluid dynamic compromises.

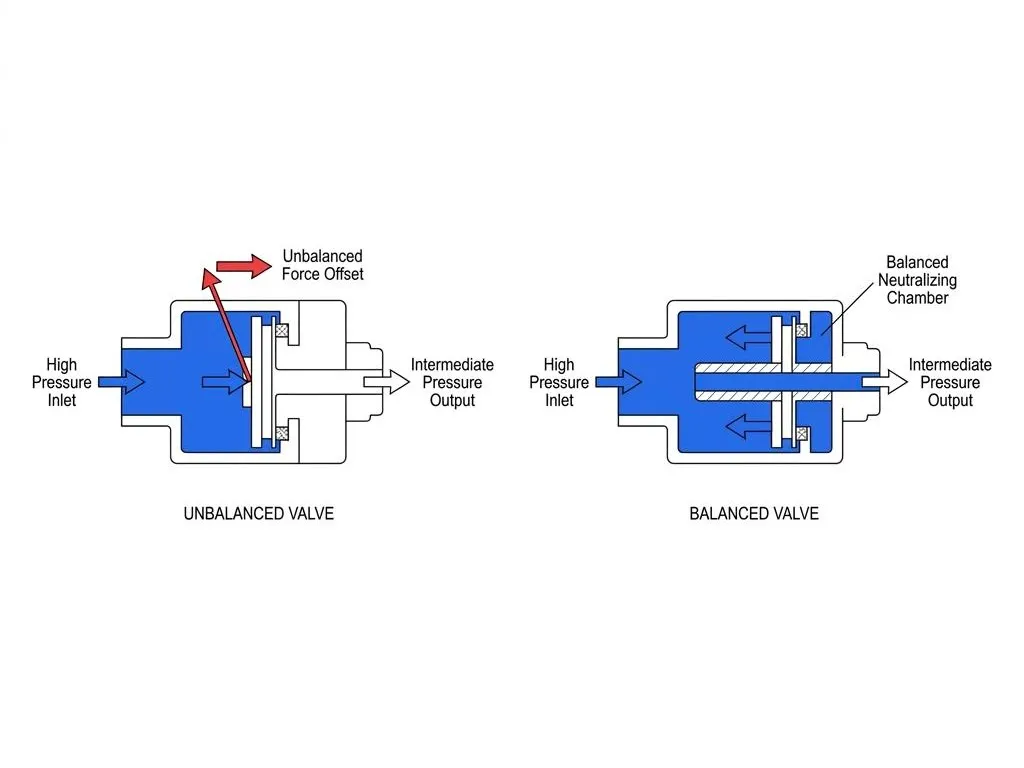

In an unbalanced architecture, raw cylinder pressure acts directly against the sealing face of the valve seat. Early in a dive with a full 200 bar cylinder, this high pressure assists in opening or closing the valve against spring tension. As breathing gas is consumed, this assisting supply pressure decays steadily throughout the dive profile.
When tank pressure drops toward 30 bar, the diminished driving force alters the intermediate pressure baseline delivered by the first stage. As intermediate pressure falls, the second stage poppet requires higher cracking effort from the diver's lungs to initiate flow, resulting in noticeably heavier breathing effort.
Balanced Architecture: Eliminating Supply Pressure Interference
Balanced first stages incorporate geometric pressure-equalization pathways that prevent fluctuating supply pressures from influencing valve displacement.
In a balanced design, high-pressure gas is routed simultaneously through internal passages across opposing, identical surface areas on the valve poppet or piston shaft. Equalizing the surface area cancels the opposing linear forces exerted by raw tank pressure, driving the net supply force to zero.
Consequently, whether the cylinder contains 200 bar or drops into the 20 bar reserve zone, the valve responds exclusively to ambient water pressure and the calibrated main spring. The diver experiences consistent, uninterrupted gas delivery throughout the entire dive profile regardless of cylinder contents.
Piston vs. Diaphragm: Environmental Sealing and Cold Water Deployment
Balanced first stages split into two primary engineering categories based on how they track ambient pressure: balanced piston and balanced diaphragm designs. Both maintain stable pressure balance while serving different environmental demands.
Balanced flow-through pistons utilize a single moving component to deliver high instantaneous gas volumes to the second stage. This rapid mechanical response ensures uninterrupted flow rates even when two divers breathe heavily from the same first stage during deep emergency ascents.
Balanced diaphragm systems isolate the internal spring and moving components from the external marine environment using a flexible sealing membrane. This environmental dry seal prevents cold water, suspended sediment, and mineral deposits from entering the main spring chamber, eliminating internal ice formation and preventing freezing-induced free flows during demanding ice and cold-water dives.
Preserving Safety Margins in Demanding Aquatic Environments
Descending past 30 meters quadruples gas density compared to surface levels due to ambient hydrostatic pressure. This dense gas creates turbulent flow and boundary-layer friction inside regulator pathways, increasing total work of breathing.
When low cylinder pressures combine with dense gas at depth, the elevated inhalation resistance of an unbalanced regulator can trigger respiratory fatigue, carbon dioxide retention, and panic. The stable intermediate pressure maintained by a balanced first stage provides a vital safety buffer under severe physical stress.
Understanding internal regulator mechanics extends beyond theoretical equipment knowledge. It empowers divers to match gear choices to their target dive profiles, ensuring calm execution and reliable life-support performance across every aquatic environment.
